Motogadget Motoscope Tiny Vintage

Motogadget, Motoscope Tiny. Vintage. Brass

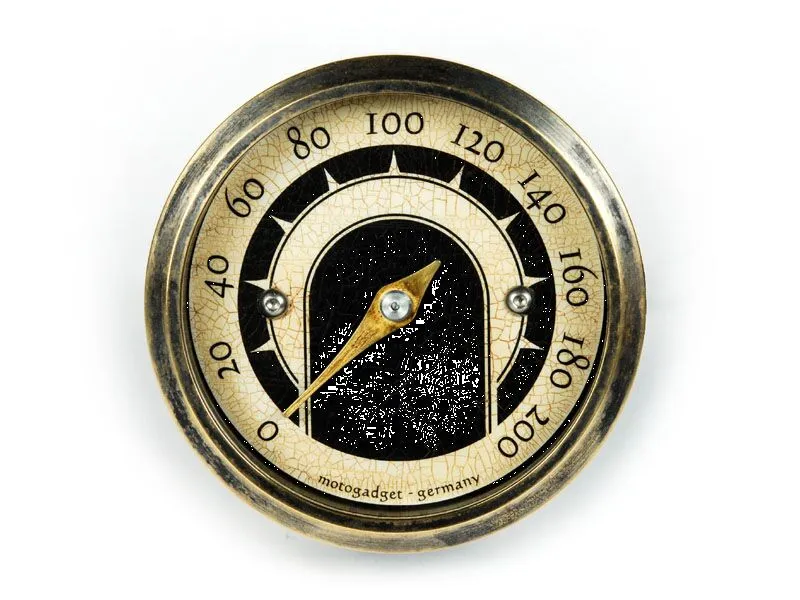

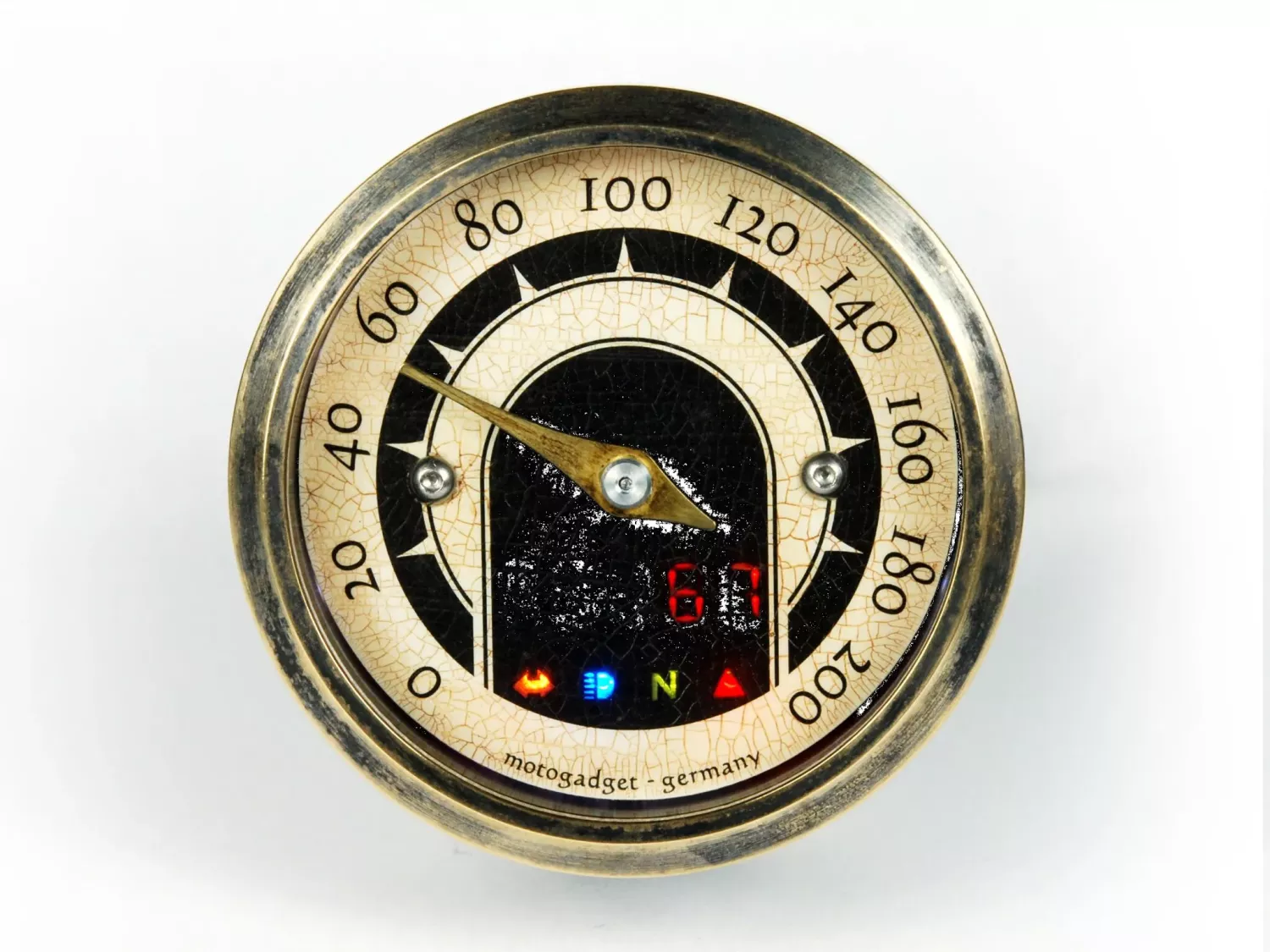

Black housing with an old brass bezel around the display. Brass pointer for that vintage styling. Analog styled speedo but with true digital functions. Miniature, with a just 49mm diameter housing and an installation depth of 24mm. Waterproof and vibration resistant. No digital display cutout to maximize the classic analog look. Digital information will be illuminated by LEDs through the blacked-out part of the speedo, only when the ignition is turned on. All options within the speedo are controlled and adjusted with a single push button switch that can be installed anywhere. Speedo can be switched from KMH to MPH function. When 200km/h is exceeded, the correct speed will still be shown through the blacked-out part of the speedo, up to 999km/h. Compatible with some stock speedo sensors like Dry-Reed and inductive proximity sensors as used on stock H-D and Buell models. For other applications a stainless speedo sensor kit, complete with 1.5 meter of wire, is included. Comes complete with detailed instruction manual. - Diameter 49mm - Installation depth 24mm - Speedometer, KMH - MPH switchable - Speed up to 200 analog, 999 digital - Maximum speed - Odometer - Trip meter - Clock - Intelligent self-calibrating teach function - All functions can be displayed with a push on the button - 4 LED indicator lights. Note: Optional 'Tiny Streamline' mounting cups are separately available. For use with 1" (25.4mm) or 22mm diameter handlebars or as weld-in cups, for recessed installation in fuel tank/dashboard etc. and as 'universal brackets'.

Fits: > Universal

Motogadget mätare med vitage look
Denna mätare är en liten, analog hastighetsmätare med mässing detaljer i ett tilltalande ''old school'' utseende.Designen är annorlunda, men tekniskt är den identiskt med motoscope tiny modelen. Mätartavlan är baserad på ''Streamline'' utformningen på 40-talet och 50-talet. Dessutom har den en gulaktig och sprickig yta som ger mätartavlan dess extremt åldrade utseende.Ramen och indikatorn är tillverkade av massivt mässing och har manuellt belagts med patina. Det skapade mönster och tecken varierar med varje instrument och ge den en individuell och unik look.
Specifikationer & detaljer
Monterings diameter: 49 mm
Vikt: ≈ 110 g
Montering: 2 x M3 gängade hål
Strömförbrukning, körande: ≈ 200 mA
Drift spänning: 9 V - 15 V
Drift temperatur: -20 till +80 xb0C

Feature
Measuring range

Speedometer, analogue (indicator)
0 – 200 km/h or mi/h

Speedometer, numeric (LED display)
200 – 999 km/h or mi/h

Max. speed
0 – 999 km/h or mi/h

On-board voltage
9 – 15 V

Clock
00:00 – 23:59

Trip meter
0 – 999.9 km or mi

Total distance (adjustable)
99999 km or mi max.

Indicator lights
turn signal, high beam, neutral, hazard light
