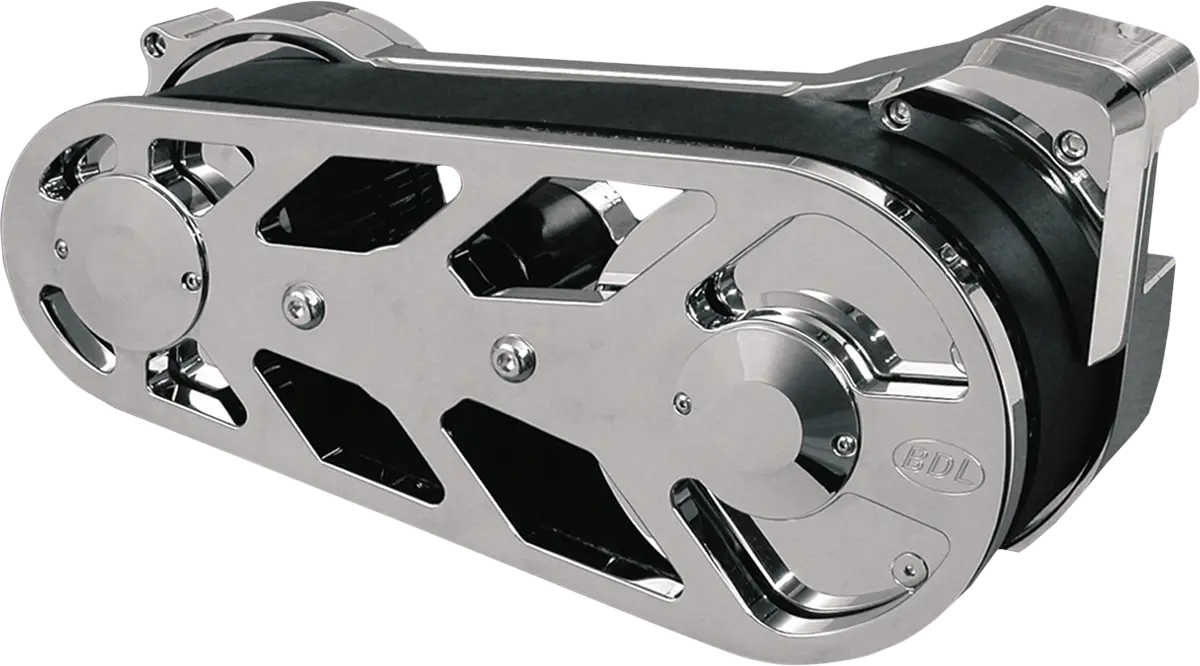

BDL TF2000 SERIES TOP FUEL/STREET DRIVE 3 3/8, OUTBOARD

BDL, TF2000 SERIES TOP FUEL/STREET DRIVE 3 3/8, OUTBOARD

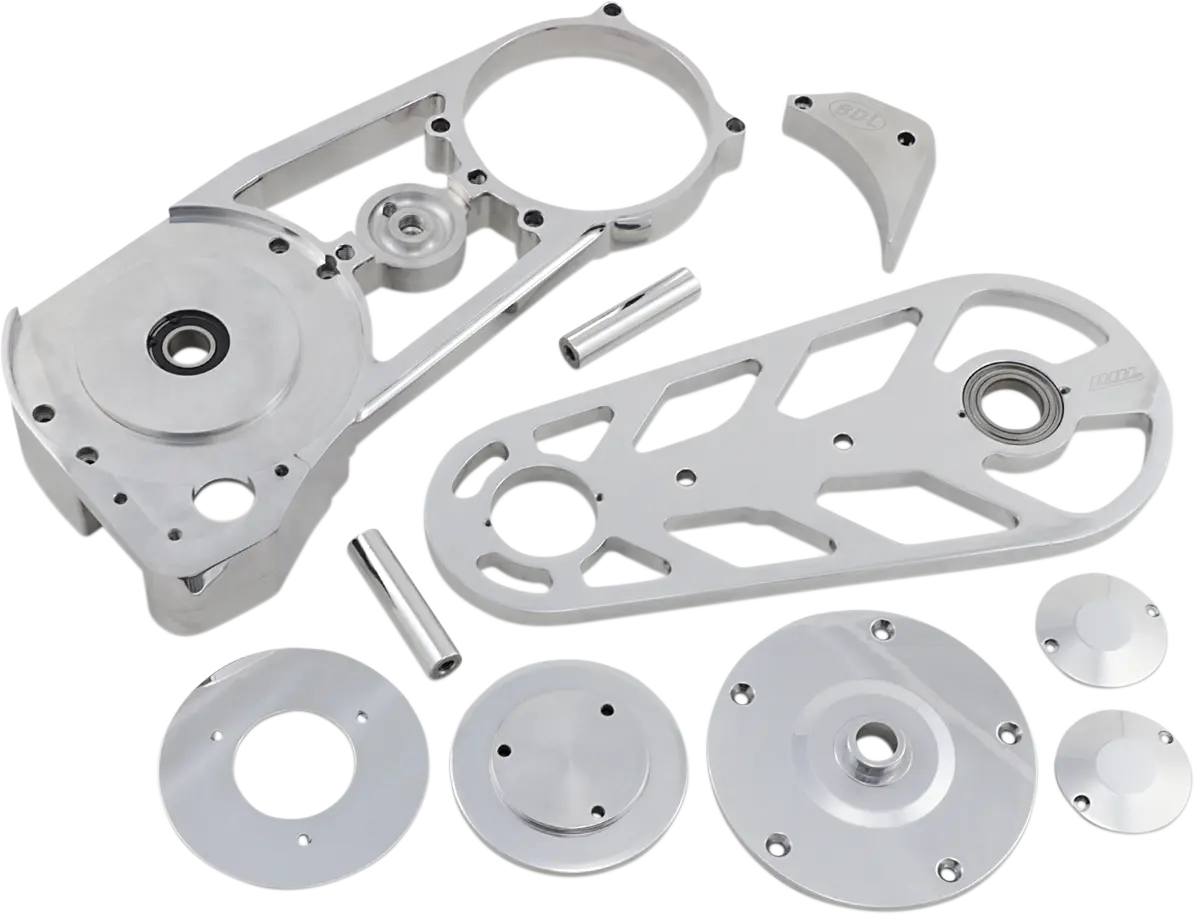

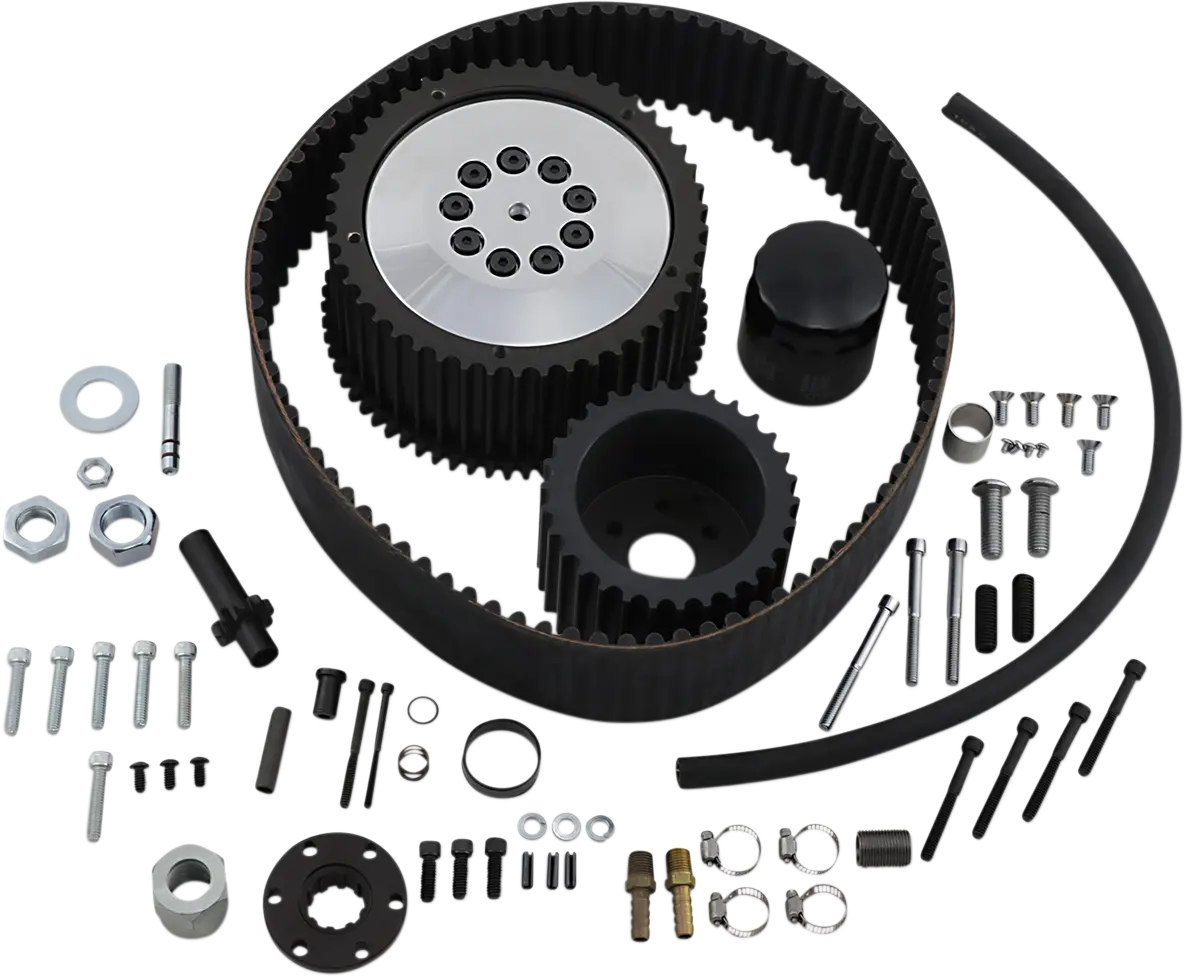

The Monster Drive! With outboard bearing for additional clutch support. This is an all billet complete 3-3/8" (85mm) wide primary belt drive kit, including clutch. It uses the same 85mm wide belt with 14mm pitched tooth as used on 600+ horsepower top fuel Harley dragsters. The clutch consists of 9 6-3/8" diameter Aramid friction plates and 11 steels. Uses up to 9 clutch springs to adjust spring pressure to accommodate any size monster motor on the market. Come with an oil filter mount in the motor plate. 46-30 tooth drive ratio. Note: The outboard support plate of this kit is inside-outside reversible. The backside is channeled for a different look when desired, but only the front side is polished. 46-30 tooth drive ratio. Note: See 518686 for the replacement 85mm wide (3-3/8"), 85 tooth, 14mm pitch belt.

Fits: > 90-06 5-sp Softail (NU)
